RTL Series Mill Turn Lathe Floor Plan

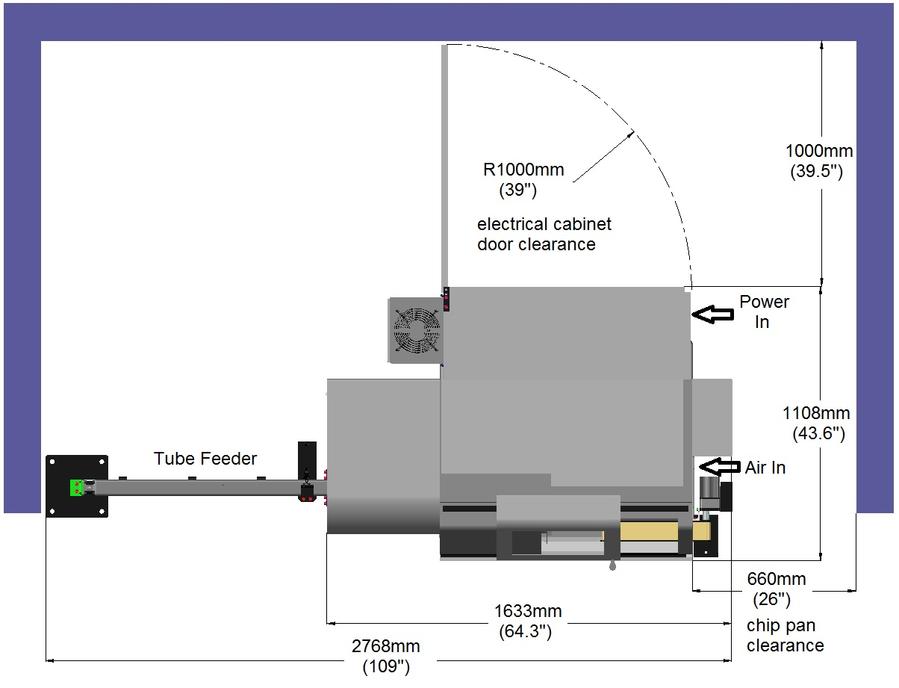

This layout shows the size of the machine and wall clearance for access to the machine.

The base machine is 1633mm(64.3") x 1108mm(43.6")

The tube feeder adds 1135mm to the length, The left side of the tube feeder can be next to a wall.
