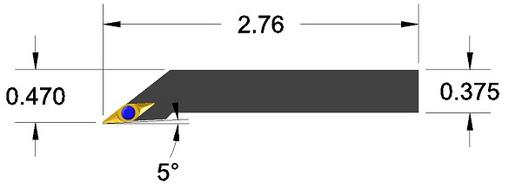

RTO-80500 (SVLCR-0606)           This holder is the primary profiling holder for all of our 2 piece ring profiles.

                                                    The holder uses VCGT-0702-- type inserts, and is suitable for all materials.

These holders & Inserts have been selected for jewelry use as they provide full profiling capabilities for both internal & external profiles and provide burr free fine finishes necessary for jewelry applications.

Ringtech is a full line distributor for DENITOOL in the jewelry industry and can provide any tooling from DENITOOL for your special needs.

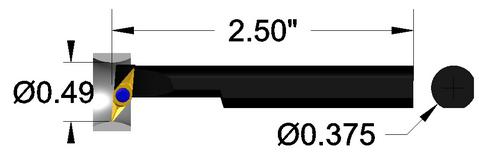

RTO-80200 (S06H SVVCR-07)     This holder is the primary internal profiling holder for all of our

                                                    internal profiles on single piece rings and shells.

                                                    US Size 4 is the smallest ring size this tool can produce.

                                                    The holder uses VCGT-070202 type inserts and is suitable for all                                                           materials.

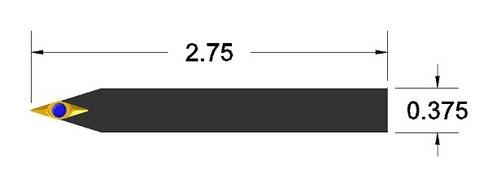

RTO-80400 (SVVCN-0606)           This holder is the primary profiling holder for all of our ring profiles.

                                                    The holder uses VCGT-0702-- type inserts, and is suitable for all materials.

Profile Tool Holders

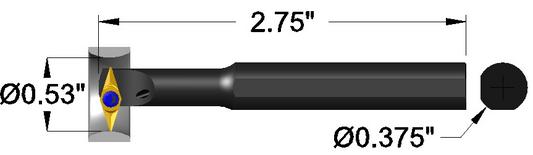

RTO-80100 (S06H SVLCR-07)     This holder is used for 2 piece ring bores and bore facing operations.

                                                    This tool minimum bore is US size 4 or 0.49" (12.4mm)

                                                    The holder uses VCGT-070202 type inserts and is suitable for use with                                                                   all materials..

RTO-81006                          (VCGT-070202-18FN DX32)

                                           With an 18 degree top rake angle and improved chip breaker provides better chip control in                                                    Silver, Cobalt Chrome and Titanium.
                                           Nose Radius: 0.007" (0.2mm) Ideal for external profiling complex designs.
                                           Coating is a new TicN coating providing good edge strength and lubricity.
                                                                                         Available in packs of 10

RTO-81000                            (VCGT-070202-25FN DX20)

                                           With a 25° top rake these inserts are ideal for profiling gold based precious metal materials.

                                           Nose Radius: 0.007" (0.2mm) Ideal for external profiling complex designs.
                                           DX20 is a TiN Coating.          Available in packs of 10

RTO-81002                          (VCGT-070204-25FN DX20)

                                           With a 25° top rake these inserts are ideal for profiling gold based precious metal materials.

                                           Nose Radius: 0.015" (0.402mm) Ideal for external profiling simple designs.
                                           DX20 is a TiN Coating.          Available in packs of 10

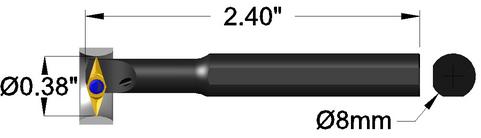

RTO-80201 (A08F SVVCR-05)     This holder is the secondary internal profiling holder for all of our

                                                    internal profiles on single piece rings and shells.

                                                    This tool minimum bore is 10mm so US size 0 or smaller rings can be made.

                                                    The holder uses VCGT-050201 type inserts and is suitable for use with                                                                  precious materials. An 8mm Bush is required for this holder.

Check out our

facebook page

RINGTECH

®

RTO-81010                          (VCGT-050101-20FN DX70)

                                          20° top rake insert for profiling small bore rings, Nose Radius: 0.004 (0.10mm) AlTin Coated
                                          For use in RTO-80201 boring bar. This insert & bar combination allows the profiling of full radii on both sides                                             of the ring from tube. The small radius reduces chip load and vibration in all materials.
                                                                                         Available in packs of 10

RTO-81012                          (VCGT-070202-18FN DLCC)

                                          This new DLCC coating and 18 degree top rake angle and improved chip breaker design provides                                                             a solution to profiling Platinum and Palladium metals.
                                          Nose Radius: 0.007" (0.2mm) Ideal for external profiling complex designs.
                                          Coating is a new DLCC (Diamond Like Coating) providing good edge strength and lubricity.
                                                                                         Available in packs of 5

Profile Inserts
