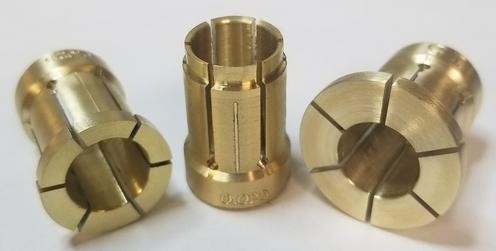

Offset Collets

Internal Holding Straight Collets with Offset Center

Ringtech manufactures all of our offset straight collets in the USA

Our collets sets are produced in US & Letter sizes in 1/2 size increments.

Features:

• Width is 8mm (custom widths can be made)
•

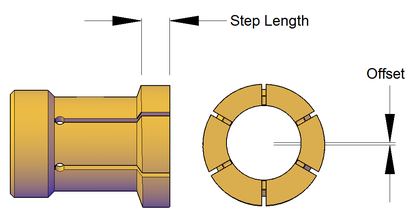

• Offset collets can be made to any offset
•

• All collets are engraved for size & offset (specify offset amount)
•

• All collets are marked for high side
•

• Internal bore is 12mm for standard collet arbors
•

• Minimum ring size is US 4 (Depending on amount of offset)
•

• Maximum ring size is US 17.5, Letter size is Z+8
•

• CNC made so all dimensions are accurate for repeatability
•

• Length is 25.4mm
•

• All 6 slots are drilled at the slot end to prevent cracking
•

• Made from brass for durability
•

• Each collet set has a powder coated collet rack provided

US 1/2 size set has 28 collets (4-17) $795.00

Letter 1/2 Size set has 60 collets  (E-Z+8) $1,680.00

Call Toll Free 01-(844) RINGTECH (844) 746 4832

   Local US # 01-(623) 209 8912
