RTO-81111 (GIE-7-SG-1.1R)           1.1mm grooving inserts are ideal for machining shell grooves,

                                                       The width is ideal for 1.1 to 8mm wide grooves and has the rigidity to                                                              machine most materials

                                                       Right hand inserts mount in RH square tools or Left hand boring bars.

                                                       Grade C2                                                      Available in packs of 10.

                                                        Also Available in Left Hand configuration

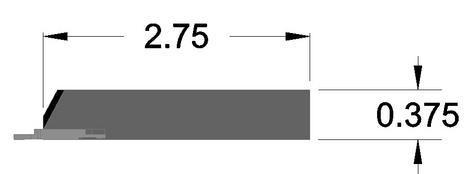

RTO-80800 (THE-7-3/8R)           This holder is the primary grooving holder for all of our grooving operations.

                                                  The holder uses GIE-7-- type inserts, and is suitable for all materials.

These holders & Inserts have been selected for jewelry use as they provide small grooving & cutoff capabilities at a reasonable cost.

Ringtech is a full line distributor for CARMEXUSA and can provide any tooling from CARMEXUSA for your special needs.

Groove Tools & Holders.

Groove Tool Holders

RTO-81601 (GIE-7-GW-60R)          These threading inserts are ideal for small V grooves and 30 degree                                                               edges on eternity bands and milled design bands to provide a sharp

                                                      defining edge when milling.

                                                      Right hand inserts mount in RH square tools or Left hand boring bars.

                                                      Grade C2                                                      Available in packs of 10.

                                                      Also Available in Left Hand configuration

RTO-81701 (GIE-7-GR-1.0R)          These 1mm wide full radius inserts are ideal for small male mill                                                                       grain grooves and for radiused grooves for eternity bands.

                                                      Right hand inserts mount in RH square tools or Left hand boring bars.

                                                      Grade C2                                                      Available in packs of 10.

                                                      Also Available in Left Hand configuration

RTO-80803 (THE-7-3/8RM)        This holder is the primary cutoff holder for small tool cutoff operations.

                                                  The holder is modified to allow clearance for the ring after cutoff.

                                                  The holder uses GIE-7-- type inserts, and is suitable for all materials.

Grooving Inserts

Call Toll Free 01-(844) RINGTECH (844) 746 4832

   Local US # 01-(623) 209 8912

RTO-81051 (GIE-7-SG-0.5R)           0.5mm grooving inserts are ideal for small grooves,                                                                                          These inserts can also be used for cutoff operations on thin wall tube .

                                                       Right hand inserts mount in RH square tools or Left hand boring bars.

                                                       Grade C2                                                      Available in packs of 10.

​                                                       Also Available in Left Hand configuration



RTO-81101 (GIE-7-GP-1.0RR)        1.0mm cutoff inserts ideal for cutoff in thick wall tube.

                                                       The leading edge has a 7 degree angle to allow no burr cutoff.                                                                         Right hand inserts mount in RH square tools or Left hand boring bars.

                                                       Grade C2                                                      Available in packs of 10.

                                                        Also Available in Left Hand configuration
