RINGTECH

®

Turret Tooling

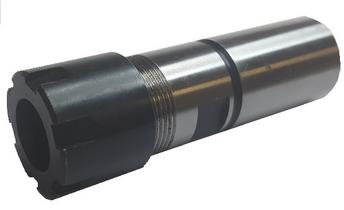

RTO-89010   ER16 Collet Holder

                                   These ER16 Collet holders are used for holding small drill & boring bars when you need

                                   to machine small parts. Tool is 3/4" diameter and no adaptor is needed.

                                   The ER16 collet system is a proven system for precise holding of round tooling,                                                          providing an accurate alignment of small diameter tools up to 10mm (3/8").


RTO-880---  Reducer Bushing

                               These bushings provide a method of clamping small boring bars or tools. The bushes are available in 1/4", 5/16", 8mm, 3/8", 1/2", 5/8", 16mm

                               The 8mm & 3/8" bushes are available with an extended nose to provide support for our small boring bars.


RTO-2023  Mill Grain Roller Tool Holder (1/8")

                               These holders clamp a standard 1/8" square

                               mill grain roller. 2 M4 set screws provide                                            clamping.

RTO-1000  Square Tool Holders

                               These holders clamp the tool with a single 8mm screw, providing rigid                                        clamping with easy use.

RTO-2021  Posalux Tool Holder

                               These holders clamp a standard Posalux type                                diamond tool. 2 4mm screws allow for precise                                center height location.

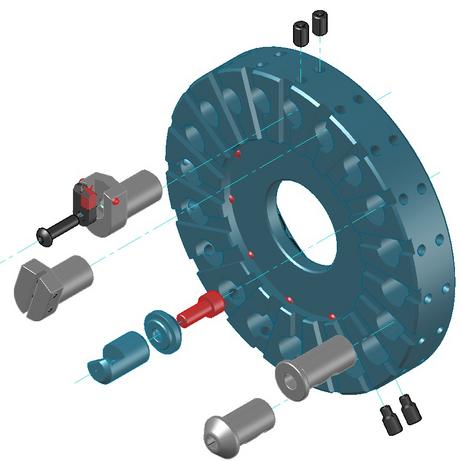

The turret is designed to accommodate standard 3/8" Square & 3/4" diameter tool holders.

Tooling specific to the jewelry industry include mill grain holders and Posalux tool holders.


The tools listed are manufactured in the USA by Ringtech.
