RINGTECH

®

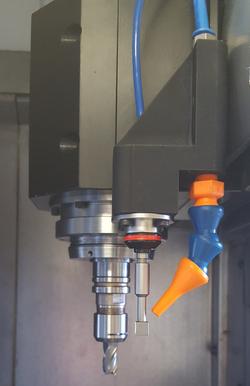

40,000 rpm 3.6 hp power



We have collaborated with a US based spindle manufacturer to find the sweet spot of high RPM & low RPM torque.

The spindle features a 4 pole 60mm stator that is supported by 3 high precision ceramic bearings. We developed a special sensor system to check for complete tool clamping, ensuring optimum positioning & clamping of the HSK25 toolholders.

Stainless steel splash covers and double labyrinth seals prevent coolant contamination without the need for air purge systems.


These spindles are chilled using air conditioned oil cooling systems


Integrated with an 18 position toolchanger this spindle solves your live tool needs.



Add a Y axis to the machine configuration and create the ultimate ring machining center.

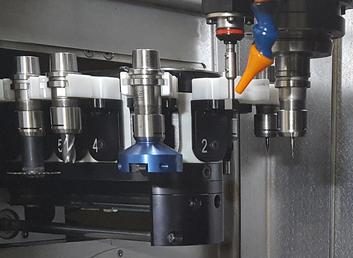

We have created an 18 position tool changer system around this spindle.

Using precisely balanced HSK25 ER16 tool holders and diamond tipped cutters, we can create finished ring designs requiring multiple tools and unlimited designs.



We integrate the speed control function into the CNC controller. Simply select the material to machine and the software does the work for you.



This is our ultimate system. With 3.6kw of power, smooth and precise cuts can be made even in the toughest materials.

We configure all the necessary hardware and software for a complete installation.

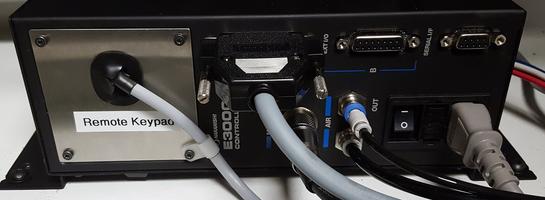

NSK Electric Spindles:

Spindles are  available up to 80,000 rpm

RingTech recommends these spindles for machining Gold,Titanium and Platinum. NSK electric spindles are fully integrated into the machine.

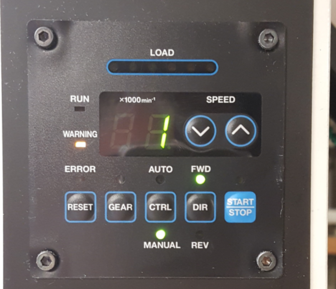

Speeds are programmable from the V6 software.
We integrate the speed control function into the CNC controller.
Simply select the material to machine and the software does the work for you. These are our most popular low cost systems. We configure all the necessary hardware and software for a complete installation. There are two tool systems for drilling and milling.
Single tools for axial or face drilling and profile milling, perfect for HI LO designs.

​We build custom tool holders for these spindles to optimize tool table space.

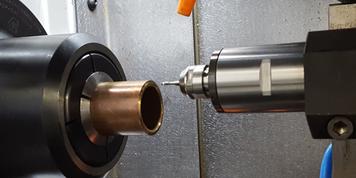

NSK electric tooling setup

We understand that different applications require unique solutions, If you do not see what you need please ask us for an option to solve your specific challenge.


Tool Changer Spindles:

With over 15 years in machining precious metals we have found that there is a balance between RPM and torque that requires high RPM and good low RPM torque.

We have the solution !

Live Tool Options
