Design 415   Radiused Edge Flat Center Ring

Call Toll Free 01-(844) RINGTECH (844) 746 4832

   Local US # 01-(623) 209 8912

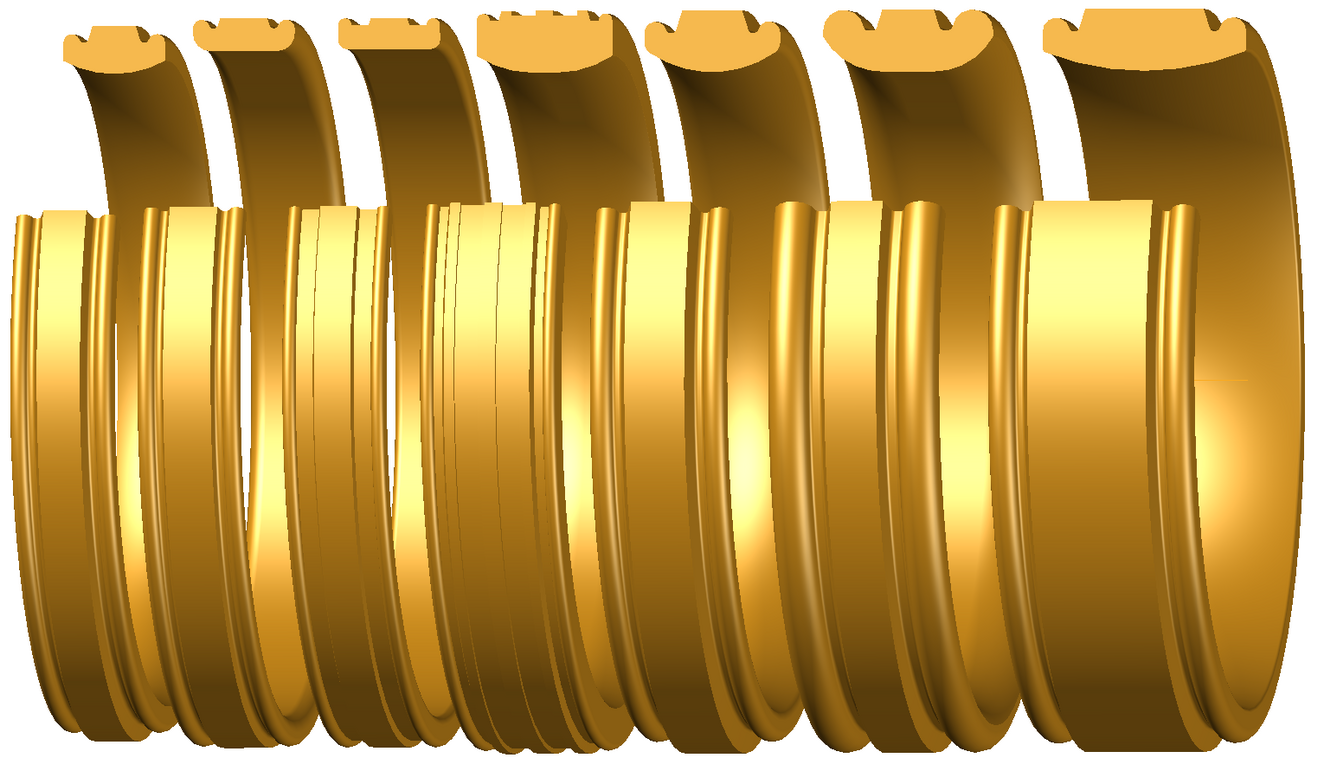

This profile has a full 180 degree radiused edge and a flat center profile.

This profile works well using edge radii from 0.1mm up to 0.7mm.

​Adjusting the edge thickness can dramatically change the profile shape.


  • Any bore can be used on this design.
  • Grooving Cycles can be added.
  • Mill designs can be added
  • Stone milling can be added


The key features that can be changed are :


  • RING SIZE
  • RING WIDTH
  • RING THICKNESS
  • EDGE THICKNESS
  • EDGE WIDTH
  • ​CENTER RAISED ANGLE
  • ​GROOVE WIDTH
